1. The Science and Framework of Alumina Ceramic Products
1.1 Crystallography and Compositional Variations of Light Weight Aluminum Oxide

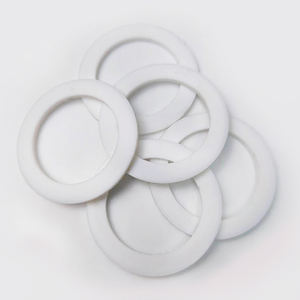

(Alumina Ceramics Rings)
Alumina ceramic rings are manufactured from aluminum oxide (Al ₂ O TWO), a compound renowned for its outstanding balance of mechanical strength, thermal security, and electric insulation.
The most thermodynamically steady and industrially relevant phase of alumina is the alpha (α) stage, which crystallizes in a hexagonal close-packed (HCP) structure belonging to the diamond household.
In this setup, oxygen ions develop a thick latticework with aluminum ions occupying two-thirds of the octahedral interstitial sites, leading to an extremely stable and durable atomic framework.
While pure alumina is theoretically 100% Al Two O SIX, industrial-grade materials typically have small percents of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y TWO O THREE) to control grain development throughout sintering and enhance densification.
Alumina ceramics are classified by purity levels: 96%, 99%, and 99.8% Al ₂ O five are common, with greater pureness correlating to improved mechanical homes, thermal conductivity, and chemical resistance.
The microstructure– specifically grain size, porosity, and stage circulation– plays an essential function in determining the final performance of alumina rings in service settings.
1.2 Secret Physical and Mechanical Residence
Alumina ceramic rings display a suite of properties that make them crucial popular industrial settings.
They possess high compressive toughness (approximately 3000 MPa), flexural toughness (normally 350– 500 MPa), and superb solidity (1500– 2000 HV), making it possible for resistance to use, abrasion, and deformation under lots.
Their reduced coefficient of thermal expansion (about 7– 8 × 10 ⁻⁶/ K) guarantees dimensional security across vast temperature varieties, minimizing thermal tension and breaking throughout thermal biking.
Thermal conductivity varieties from 20 to 30 W/m · K, depending upon purity, enabling modest warm dissipation– adequate for numerous high-temperature applications without the requirement for energetic cooling.

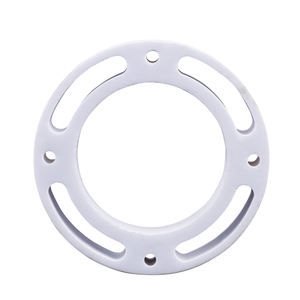

( Alumina Ceramics Ring)
Electrically, alumina is a superior insulator with a volume resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric stamina of around 10– 15 kV/mm, making it perfect for high-voltage insulation parts.
Additionally, alumina shows superb resistance to chemical attack from acids, alkalis, and molten steels, although it is vulnerable to attack by solid antacid and hydrofluoric acid at raised temperatures.
2. Manufacturing and Accuracy Engineering of Alumina Rings
2.1 Powder Processing and Shaping Strategies
The manufacturing of high-performance alumina ceramic rings begins with the choice and prep work of high-purity alumina powder.
Powders are usually synthesized via calcination of aluminum hydroxide or via progressed methods like sol-gel processing to attain fine particle dimension and narrow dimension circulation.
To develop the ring geometry, several forming approaches are employed, consisting of:
Uniaxial pressing: where powder is compressed in a die under high pressure to form a “green” ring.
Isostatic pressing: applying uniform stress from all instructions utilizing a fluid medium, causing higher density and even more uniform microstructure, particularly for complicated or large rings.
Extrusion: ideal for lengthy cylindrical types that are later on cut into rings, frequently used for lower-precision applications.
Shot molding: made use of for detailed geometries and limited tolerances, where alumina powder is blended with a polymer binder and injected right into a mold.
Each technique influences the last density, grain alignment, and flaw distribution, demanding careful procedure selection based on application needs.
2.2 Sintering and Microstructural Growth
After shaping, the eco-friendly rings go through high-temperature sintering, generally in between 1500 ° C and 1700 ° C in air or controlled environments.
Throughout sintering, diffusion devices drive bit coalescence, pore elimination, and grain development, causing a completely dense ceramic body.
The rate of heating, holding time, and cooling profile are specifically managed to prevent fracturing, bending, or overstated grain development.
Ingredients such as MgO are often presented to hinder grain limit movement, causing a fine-grained microstructure that enhances mechanical stamina and integrity.
Post-sintering, alumina rings might go through grinding and washing to attain limited dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface finishes (Ra < 0.1 µm), crucial for securing, bearing, and electric insulation applications.
3. Useful Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are extensively utilized in mechanical systems due to their wear resistance and dimensional stability.
Key applications include:
Sealing rings in pumps and shutoffs, where they resist erosion from abrasive slurries and destructive fluids in chemical handling and oil & gas markets.
Birthing elements in high-speed or harsh atmospheres where metal bearings would certainly deteriorate or need frequent lubrication.
Overview rings and bushings in automation tools, using reduced friction and lengthy service life without the demand for greasing.
Use rings in compressors and generators, lessening clearance between rotating and stationary components under high-pressure problems.
Their capability to keep efficiency in completely dry or chemically hostile settings makes them above many metallic and polymer alternatives.
3.2 Thermal and Electric Insulation Functions
In high-temperature and high-voltage systems, alumina rings serve as essential shielding parts.
They are employed as:
Insulators in burner and heater components, where they sustain repellent cords while enduring temperatures above 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, preventing electric arcing while keeping hermetic seals.
Spacers and support rings in power electronic devices and switchgear, separating conductive parts in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their low dielectric loss and high breakdown strength make certain signal stability.
The combination of high dielectric stamina and thermal stability allows alumina rings to function dependably in environments where organic insulators would break down.
4. Material Improvements and Future Overview
4.1 Composite and Doped Alumina Systems
To better enhance efficiency, scientists and manufacturers are developing advanced alumina-based composites.
Instances include:
Alumina-zirconia (Al Two O FIVE-ZrO TWO) composites, which exhibit improved crack toughness via makeover toughening mechanisms.
Alumina-silicon carbide (Al two O SIX-SiC) nanocomposites, where nano-sized SiC fragments improve firmness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can change grain border chemistry to boost high-temperature toughness and oxidation resistance.
These hybrid products expand the functional envelope of alumina rings into even more extreme conditions, such as high-stress vibrant loading or quick thermal biking.
4.2 Arising Trends and Technical Combination
The future of alumina ceramic rings hinges on clever combination and precision manufacturing.
Patterns consist of:
Additive manufacturing (3D printing) of alumina elements, making it possible for complex internal geometries and personalized ring layouts formerly unreachable with typical methods.
Practical grading, where structure or microstructure varies throughout the ring to enhance performance in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking using ingrained sensing units in ceramic rings for anticipating upkeep in industrial machinery.
Increased use in renewable resource systems, such as high-temperature gas cells and focused solar energy plants, where product dependability under thermal and chemical stress and anxiety is vital.
As markets require higher efficiency, longer life-spans, and lowered maintenance, alumina ceramic rings will certainly continue to play an essential duty in making it possible for next-generation design services.
5. Distributor
Alumina Technology Co., Ltd focus on the research and development, production and sales of aluminum oxide powder, aluminum oxide products, aluminum oxide crucible, etc., serving the electronics, ceramics, chemical and other industries. Since its establishment in 2005, the company has been committed to providing customers with the best products and services. If you are looking for high quality porous alumina ceramics, please feel free to contact us. (nanotrun@yahoo.com)
