1. Fundamental Structure and Structural Architecture of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Specifying the Material Class
(Transparent Ceramics)
Quartz ceramics, likewise called fused quartz or fused silica porcelains, are innovative not natural products originated from high-purity crystalline quartz (SiO TWO) that go through controlled melting and debt consolidation to create a thick, non-crystalline (amorphous) or partly crystalline ceramic framework.
Unlike standard ceramics such as alumina or zirconia, which are polycrystalline and made up of multiple phases, quartz ceramics are primarily made up of silicon dioxide in a network of tetrahedrally worked with SiO four systems, using outstanding chemical purity– often going beyond 99.9% SiO ₂.
The distinction in between merged quartz and quartz porcelains lies in handling: while fused quartz is usually a fully amorphous glass formed by fast air conditioning of liquified silica, quartz porcelains may entail controlled formation (devitrification) or sintering of great quartz powders to accomplish a fine-grained polycrystalline or glass-ceramic microstructure with enhanced mechanical robustness.
This hybrid strategy combines the thermal and chemical security of fused silica with enhanced fracture durability and dimensional security under mechanical load.
1.2 Thermal and Chemical Stability Mechanisms
The phenomenal performance of quartz ceramics in extreme atmospheres stems from the strong covalent Si– O bonds that form a three-dimensional network with high bond energy (~ 452 kJ/mol), giving impressive resistance to thermal destruction and chemical attack.
These products exhibit an incredibly low coefficient of thermal development– about 0.55 × 10 ⁻⁶/ K over the array 20– 300 ° C– making them extremely immune to thermal shock, a critical attribute in applications including rapid temperature level cycling.
They maintain architectural integrity from cryogenic temperature levels up to 1200 ° C in air, and also greater in inert ambiences, before softening begins around 1600 ° C.
Quartz porcelains are inert to the majority of acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the stability of the SiO ₂ network, although they are prone to assault by hydrofluoric acid and strong alkalis at elevated temperatures.
This chemical resilience, incorporated with high electrical resistivity and ultraviolet (UV) openness, makes them optimal for use in semiconductor handling, high-temperature heaters, and optical systems subjected to severe problems.
2. Production Processes and Microstructural Control

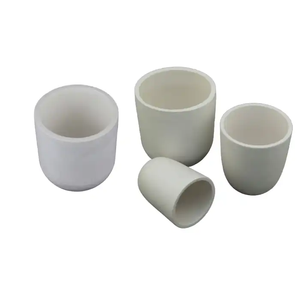

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz ceramics involves sophisticated thermal processing methods made to preserve purity while accomplishing desired density and microstructure.
One typical method is electric arc melting of high-purity quartz sand, adhered to by controlled cooling to form fused quartz ingots, which can after that be machined into elements.
For sintered quartz porcelains, submicron quartz powders are compacted via isostatic pressing and sintered at temperature levels in between 1100 ° C and 1400 ° C, often with marginal ingredients to promote densification without inducing extreme grain development or phase makeover.
A critical obstacle in processing is staying clear of devitrification– the spontaneous crystallization of metastable silica glass into cristobalite or tridymite phases– which can endanger thermal shock resistance due to volume modifications during stage transitions.
Suppliers utilize specific temperature level control, quick air conditioning cycles, and dopants such as boron or titanium to subdue undesirable condensation and maintain a secure amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Manufacture
Recent advancements in ceramic additive manufacturing (AM), especially stereolithography (SLA) and binder jetting, have made it possible for the manufacture of complicated quartz ceramic elements with high geometric accuracy.
In these procedures, silica nanoparticles are suspended in a photosensitive resin or uniquely bound layer-by-layer, complied with by debinding and high-temperature sintering to accomplish complete densification.
This technique lowers product waste and allows for the development of detailed geometries– such as fluidic networks, optical cavities, or warmth exchanger elements– that are challenging or difficult to attain with standard machining.
Post-processing techniques, consisting of chemical vapor infiltration (CVI) or sol-gel finishing, are occasionally put on secure surface porosity and improve mechanical and ecological longevity.
These innovations are expanding the application range of quartz porcelains right into micro-electromechanical systems (MEMS), lab-on-a-chip tools, and customized high-temperature fixtures.
3. Practical Residences and Performance in Extreme Environments
3.1 Optical Transparency and Dielectric Behavior
Quartz porcelains show one-of-a-kind optical buildings, consisting of high transmission in the ultraviolet, noticeable, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them essential in UV lithography, laser systems, and space-based optics.
This openness develops from the lack of digital bandgap transitions in the UV-visible range and marginal scattering due to homogeneity and reduced porosity.
Additionally, they possess outstanding dielectric properties, with a reduced dielectric constant (~ 3.8 at 1 MHz) and very little dielectric loss, enabling their usage as shielding elements in high-frequency and high-power electronic systems, such as radar waveguides and plasma reactors.
Their capability to keep electric insulation at raised temperatures even more enhances integrity in demanding electrical environments.
3.2 Mechanical Behavior and Long-Term Longevity
Despite their high brittleness– a common trait among porcelains– quartz ceramics demonstrate excellent mechanical strength (flexural stamina as much as 100 MPa) and superb creep resistance at high temperatures.
Their hardness (around 5.5– 6.5 on the Mohs range) offers resistance to surface abrasion, although care has to be taken throughout managing to prevent damaging or crack propagation from surface defects.
Environmental toughness is an additional essential benefit: quartz porcelains do not outgas significantly in vacuum, withstand radiation damage, and preserve dimensional security over extended direct exposure to thermal cycling and chemical settings.
This makes them favored materials in semiconductor manufacture chambers, aerospace sensing units, and nuclear instrumentation where contamination and failure should be decreased.
4. Industrial, Scientific, and Arising Technical Applications
4.1 Semiconductor and Photovoltaic Production Solutions
In the semiconductor market, quartz porcelains are common in wafer processing equipment, including furnace tubes, bell jars, susceptors, and shower heads utilized in chemical vapor deposition (CVD) and plasma etching.
Their pureness avoids metallic contamination of silicon wafers, while their thermal stability makes certain consistent temperature level distribution during high-temperature processing steps.
In photovoltaic manufacturing, quartz elements are made use of in diffusion heaters and annealing systems for solar cell production, where regular thermal profiles and chemical inertness are crucial for high yield and efficiency.
The demand for larger wafers and higher throughput has actually driven the growth of ultra-large quartz ceramic structures with improved homogeneity and lowered defect thickness.
4.2 Aerospace, Protection, and Quantum Innovation Assimilation
Past industrial processing, quartz ceramics are used in aerospace applications such as projectile advice home windows, infrared domes, and re-entry car elements because of their ability to withstand severe thermal slopes and wind resistant stress.
In protection systems, their transparency to radar and microwave frequencies makes them suitable for radomes and sensor housings.
Much more lately, quartz porcelains have actually located functions in quantum technologies, where ultra-low thermal growth and high vacuum cleaner compatibility are needed for accuracy optical cavities, atomic catches, and superconducting qubit units.
Their capability to decrease thermal drift makes sure long comprehensibility times and high measurement accuracy in quantum computing and picking up systems.
In recap, quartz porcelains represent a class of high-performance materials that bridge the void between conventional ceramics and specialized glasses.
Their unmatched combination of thermal security, chemical inertness, optical openness, and electrical insulation makes it possible for modern technologies running at the limits of temperature, purity, and precision.
As manufacturing techniques evolve and require expands for materials capable of withstanding increasingly severe conditions, quartz porcelains will remain to play a foundational role in advancing semiconductor, energy, aerospace, and quantum systems.
