1. Material Foundations and Collaborating Layout
1.1 Innate Qualities of Constituent Phases

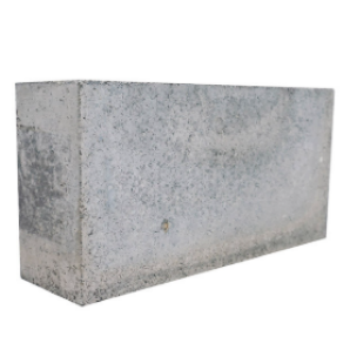

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si three N FOUR) and silicon carbide (SiC) are both covalently adhered, non-oxide ceramics renowned for their outstanding efficiency in high-temperature, destructive, and mechanically requiring environments.
Silicon nitride displays outstanding fracture durability, thermal shock resistance, and creep stability as a result of its one-of-a-kind microstructure made up of extended β-Si three N four grains that make it possible for crack deflection and connecting mechanisms.
It preserves stamina as much as 1400 ° C and possesses a fairly reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), minimizing thermal stresses throughout fast temperature changes.
In contrast, silicon carbide uses premium firmness, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it perfect for abrasive and radiative warmth dissipation applications.
Its broad bandgap (~ 3.3 eV for 4H-SiC) additionally gives outstanding electric insulation and radiation resistance, useful in nuclear and semiconductor contexts.
When integrated right into a composite, these materials show complementary actions: Si two N ₄ enhances toughness and damages tolerance, while SiC boosts thermal monitoring and use resistance.
The resulting hybrid ceramic attains a balance unattainable by either phase alone, forming a high-performance structural material customized for extreme service problems.
1.2 Composite Design and Microstructural Engineering
The design of Si four N FOUR– SiC composites includes precise control over stage distribution, grain morphology, and interfacial bonding to maximize collaborating results.
Usually, SiC is presented as fine particulate reinforcement (varying from submicron to 1 µm) within a Si six N ₄ matrix, although functionally graded or layered designs are also explored for specialized applications.
During sintering– normally by means of gas-pressure sintering (GENERAL PRACTITIONER) or hot pressing– SiC fragments influence the nucleation and development kinetics of β-Si four N four grains, typically promoting finer and even more uniformly oriented microstructures.
This improvement boosts mechanical homogeneity and reduces defect dimension, adding to enhanced strength and dependability.
Interfacial compatibility between both stages is essential; because both are covalent ceramics with comparable crystallographic symmetry and thermal development habits, they form meaningful or semi-coherent boundaries that stand up to debonding under lots.
Ingredients such as yttria (Y ₂ O TWO) and alumina (Al two O THREE) are utilized as sintering help to promote liquid-phase densification of Si five N four without compromising the security of SiC.
Nonetheless, too much secondary phases can deteriorate high-temperature performance, so make-up and processing should be enhanced to decrease lustrous grain border films.
2. Processing Strategies and Densification Difficulties

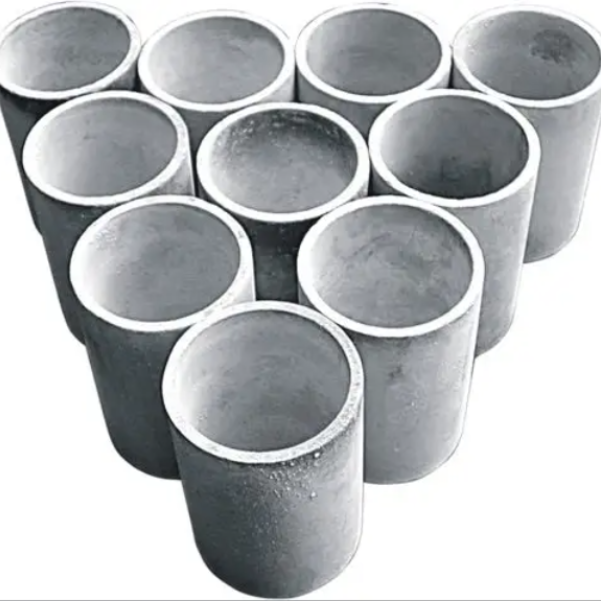

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Preparation and Shaping Techniques
High-quality Si Three N ₄– SiC composites start with uniform mixing of ultrafine, high-purity powders utilizing wet round milling, attrition milling, or ultrasonic dispersion in natural or liquid media.
Attaining consistent diffusion is vital to avoid cluster of SiC, which can function as tension concentrators and minimize crack sturdiness.
Binders and dispersants are contributed to support suspensions for forming methods such as slip spreading, tape casting, or injection molding, relying on the preferred component geometry.
Environment-friendly bodies are then very carefully dried and debound to get rid of organics prior to sintering, a process requiring controlled heating prices to prevent fracturing or warping.
For near-net-shape manufacturing, additive techniques like binder jetting or stereolithography are emerging, enabling intricate geometries previously unachievable with conventional ceramic handling.
These methods require customized feedstocks with enhanced rheology and eco-friendly toughness, often entailing polymer-derived porcelains or photosensitive resins loaded with composite powders.
2.2 Sintering Systems and Phase Stability
Densification of Si Two N ₄– SiC compounds is challenging as a result of the solid covalent bonding and limited self-diffusion of nitrogen and carbon at useful temperatures.
Liquid-phase sintering making use of rare-earth or alkaline earth oxides (e.g., Y TWO O TWO, MgO) reduces the eutectic temperature and improves mass transport via a transient silicate melt.
Under gas pressure (generally 1– 10 MPa N TWO), this thaw facilitates rearrangement, solution-precipitation, and final densification while suppressing decay of Si two N FOUR.
The presence of SiC affects thickness and wettability of the fluid phase, potentially changing grain development anisotropy and last structure.
Post-sintering heat treatments might be put on crystallize residual amorphous stages at grain boundaries, enhancing high-temperature mechanical properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently made use of to validate phase purity, absence of undesirable secondary stages (e.g., Si ₂ N ₂ O), and consistent microstructure.
3. Mechanical and Thermal Efficiency Under Tons
3.1 Strength, Strength, and Fatigue Resistance
Si ₃ N FOUR– SiC compounds show remarkable mechanical efficiency compared to monolithic ceramics, with flexural toughness exceeding 800 MPa and crack strength values getting to 7– 9 MPa · m ¹/ TWO.
The enhancing effect of SiC particles impedes misplacement motion and fracture proliferation, while the elongated Si two N ₄ grains continue to offer strengthening through pull-out and linking devices.
This dual-toughening strategy leads to a product very resistant to impact, thermal cycling, and mechanical tiredness– crucial for rotating components and architectural components in aerospace and power systems.
Creep resistance continues to be superb approximately 1300 ° C, credited to the stability of the covalent network and minimized grain limit gliding when amorphous stages are reduced.
Firmness worths commonly range from 16 to 19 Grade point average, providing superb wear and disintegration resistance in unpleasant environments such as sand-laden flows or sliding get in touches with.
3.2 Thermal Management and Ecological Sturdiness
The enhancement of SiC dramatically raises the thermal conductivity of the composite, frequently doubling that of pure Si four N ₄ (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC material and microstructure.
This boosted heat transfer capacity enables a lot more effective thermal monitoring in components revealed to extreme local home heating, such as burning liners or plasma-facing components.
The composite keeps dimensional security under high thermal gradients, resisting spallation and breaking as a result of matched thermal development and high thermal shock specification (R-value).
Oxidation resistance is an additional key benefit; SiC develops a safety silica (SiO TWO) layer upon direct exposure to oxygen at elevated temperature levels, which even more densifies and seals surface area defects.
This passive layer secures both SiC and Si Four N FOUR (which likewise oxidizes to SiO two and N ₂), guaranteeing long-term durability in air, steam, or burning environments.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Power, and Industrial Solution
Si Two N FOUR– SiC compounds are progressively deployed in next-generation gas wind turbines, where they make it possible for greater running temperatures, enhanced fuel efficiency, and lowered cooling needs.
Elements such as wind turbine blades, combustor linings, and nozzle overview vanes gain from the product’s capability to endure thermal biking and mechanical loading without considerable degradation.
In nuclear reactors, particularly high-temperature gas-cooled reactors (HTGRs), these compounds act as gas cladding or structural supports due to their neutron irradiation tolerance and fission product retention capability.
In industrial setups, they are utilized in liquified steel handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional steels would stop working prematurely.
Their lightweight nature (thickness ~ 3.2 g/cm THREE) also makes them eye-catching for aerospace propulsion and hypersonic vehicle elements based on aerothermal heating.
4.2 Advanced Production and Multifunctional Integration
Emerging study concentrates on creating functionally graded Si ₃ N FOUR– SiC frameworks, where make-up differs spatially to enhance thermal, mechanical, or electro-magnetic buildings across a single part.
Hybrid systems integrating CMC (ceramic matrix composite) architectures with fiber reinforcement (e.g., SiC_f/ SiC– Si Four N FOUR) push the borders of damage tolerance and strain-to-failure.
Additive production of these compounds allows topology-optimized heat exchangers, microreactors, and regenerative cooling networks with interior lattice structures unattainable using machining.
In addition, their integral dielectric homes and thermal stability make them candidates for radar-transparent radomes and antenna home windows in high-speed platforms.
As demands grow for products that carry out reliably under extreme thermomechanical tons, Si six N FOUR– SiC composites represent a crucial advancement in ceramic design, merging robustness with capability in a solitary, sustainable system.
Finally, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the staminas of 2 advanced ceramics to develop a crossbreed system with the ability of growing in one of the most extreme operational settings.
Their continued development will play a central duty beforehand tidy power, aerospace, and industrial modern technologies in the 21st century.
