1. Material Principles and Structural Feature
1.1 Crystal Chemistry and Polymorphism

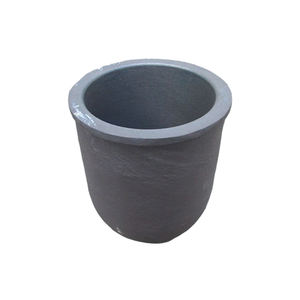

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms arranged in a tetrahedral latticework, creating one of one of the most thermally and chemically durable products recognized.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal structures being most pertinent for high-temperature applications.
The strong Si– C bonds, with bond power exceeding 300 kJ/mol, give remarkable solidity, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is chosen due to its capability to preserve structural honesty under severe thermal slopes and destructive liquified settings.
Unlike oxide porcelains, SiC does not undergo turbulent stage transitions up to its sublimation point (~ 2700 Ā° C), making it ideal for sustained operation above 1600 Ā° C.
1.2 Thermal and Mechanical Performance
A defining quality of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m Ā· K)– which promotes uniform warmth distribution and decreases thermal stress throughout rapid home heating or cooling.
This residential or commercial property contrasts dramatically with low-conductivity porcelains like alumina (ā 30 W/(m Ā· K)), which are vulnerable to cracking under thermal shock.
SiC likewise displays excellent mechanical strength at elevated temperatures, maintaining over 80% of its room-temperature flexural toughness (approximately 400 MPa) also at 1400 Ā° C.
Its reduced coefficient of thermal development (~ 4.0 Ć 10 ā»ā¶/ K) additionally enhances resistance to thermal shock, an important factor in duplicated biking between ambient and functional temperature levels.
Furthermore, SiC demonstrates remarkable wear and abrasion resistance, guaranteeing lengthy service life in settings entailing mechanical handling or unstable thaw flow.
2. Manufacturing Approaches and Microstructural Control

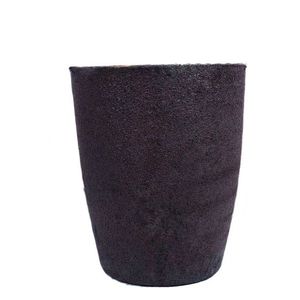

( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Approaches
Commercial SiC crucibles are largely produced through pressureless sintering, response bonding, or warm pushing, each offering unique benefits in cost, pureness, and performance.
Pressureless sintering includes compacting fine SiC powder with sintering help such as boron and carbon, followed by high-temperature treatment (2000– 2200 Ā° C )in inert ambience to accomplish near-theoretical density.
This method yields high-purity, high-strength crucibles ideal for semiconductor and advanced alloy processing.
Reaction-bonded SiC (RBSC) is produced by infiltrating a permeable carbon preform with molten silicon, which responds to develop Ī²-SiC in situ, causing a compound of SiC and residual silicon.
While a little reduced in thermal conductivity as a result of metal silicon incorporations, RBSC uses exceptional dimensional security and lower manufacturing cost, making it popular for massive commercial use.
Hot-pressed SiC, though extra costly, gives the highest possible thickness and pureness, scheduled for ultra-demanding applications such as single-crystal development.
2.2 Surface Area Top Quality and Geometric Accuracy
Post-sintering machining, consisting of grinding and splashing, guarantees precise dimensional tolerances and smooth internal surfaces that decrease nucleation websites and lower contamination danger.
Surface area roughness is very carefully controlled to stop thaw adhesion and promote simple launch of strengthened products.
Crucible geometry– such as wall density, taper angle, and lower curvature– is optimized to balance thermal mass, architectural stamina, and compatibility with furnace burner.
Customized layouts accommodate certain thaw quantities, heating profiles, and product reactivity, making sure optimum performance throughout diverse industrial procedures.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic testing, validates microstructural homogeneity and lack of defects like pores or fractures.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Atmospheres
SiC crucibles display phenomenal resistance to chemical assault by molten steels, slags, and non-oxidizing salts, outmatching conventional graphite and oxide porcelains.
They are secure in contact with liquified aluminum, copper, silver, and their alloys, resisting wetting and dissolution due to reduced interfacial energy and development of safety surface area oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles avoid metal contamination that might degrade electronic homes.
However, under very oxidizing problems or in the visibility of alkaline fluxes, SiC can oxidize to develop silica (SiO ā), which might react even more to develop low-melting-point silicates.
As a result, SiC is best suited for neutral or decreasing ambiences, where its stability is maximized.
3.2 Limitations and Compatibility Considerations
Despite its effectiveness, SiC is not generally inert; it responds with specific molten products, particularly iron-group metals (Fe, Ni, Carbon monoxide) at high temperatures with carburization and dissolution procedures.
In liquified steel handling, SiC crucibles weaken quickly and are therefore prevented.
In a similar way, alkali and alkaline planet metals (e.g., Li, Na, Ca) can lower SiC, launching carbon and forming silicides, restricting their use in battery material synthesis or responsive steel spreading.
For liquified glass and ceramics, SiC is normally compatible yet may present trace silicon right into highly sensitive optical or digital glasses.
Comprehending these material-specific interactions is vital for choosing the appropriate crucible kind and ensuring process pureness and crucible long life.
4. Industrial Applications and Technological Evolution
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are essential in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar batteries, where they withstand extended direct exposure to molten silicon at ~ 1420 Ā° C.
Their thermal stability guarantees consistent condensation and decreases dislocation density, directly affecting photovoltaic efficiency.
In shops, SiC crucibles are made use of for melting non-ferrous metals such as light weight aluminum and brass, providing longer service life and minimized dross development contrasted to clay-graphite options.
They are also utilized in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of sophisticated porcelains and intermetallic substances.
4.2 Future Trends and Advanced Material Integration
Arising applications include using SiC crucibles in next-generation nuclear materials screening and molten salt reactors, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ā O ā) are being applied to SiC surfaces to even more boost chemical inertness and avoid silicon diffusion in ultra-high-purity procedures.
Additive production of SiC elements making use of binder jetting or stereolithography is under development, appealing complicated geometries and fast prototyping for specialized crucible designs.
As need expands for energy-efficient, sturdy, and contamination-free high-temperature handling, silicon carbide crucibles will certainly remain a foundation modern technology in advanced products producing.
In conclusion, silicon carbide crucibles stand for a critical enabling part in high-temperature industrial and clinical processes.
Their unmatched mix of thermal security, mechanical strength, and chemical resistance makes them the material of option for applications where efficiency and integrity are critical.
