1. Product Composition and Architectural Layout
1.1 Glass Chemistry and Spherical Design

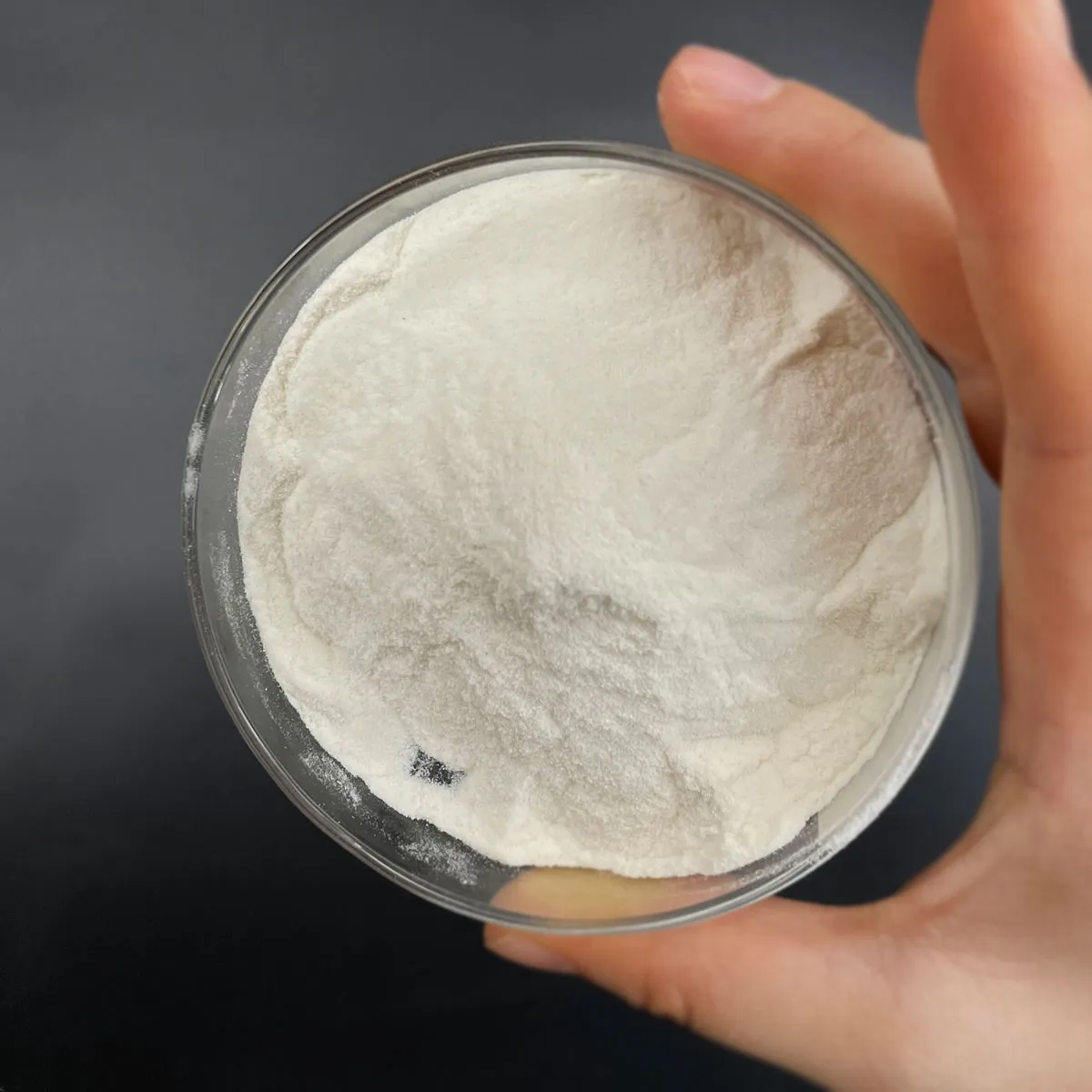

(Hollow glass microspheres)
Hollow glass microspheres (HGMs) are tiny, round fragments composed of alkali borosilicate or soda-lime glass, generally ranging from 10 to 300 micrometers in size, with wall surface densities in between 0.5 and 2 micrometers.
Their defining feature is a closed-cell, hollow inside that gives ultra-low density– often listed below 0.2 g/cm three for uncrushed spheres– while maintaining a smooth, defect-free surface area essential for flowability and composite assimilation.
The glass structure is crafted to balance mechanical toughness, thermal resistance, and chemical toughness; borosilicate-based microspheres use exceptional thermal shock resistance and lower antacids content, decreasing sensitivity in cementitious or polymer matrices.
The hollow framework is formed with a regulated development process throughout production, where forerunner glass bits having a volatile blowing agent (such as carbonate or sulfate substances) are heated in a heater.
As the glass softens, inner gas generation produces inner pressure, causing the particle to pump up right into an ideal round prior to fast cooling solidifies the structure.
This precise control over size, wall density, and sphericity makes it possible for predictable efficiency in high-stress design atmospheres.
1.2 Density, Toughness, and Failure Devices
A vital efficiency metric for HGMs is the compressive strength-to-density ratio, which determines their capacity to survive processing and solution loads without fracturing.
Business qualities are categorized by their isostatic crush toughness, ranging from low-strength rounds (~ 3,000 psi) suitable for coatings and low-pressure molding, to high-strength variations going beyond 15,000 psi utilized in deep-sea buoyancy modules and oil well cementing.
Failure normally happens by means of flexible bending instead of brittle crack, an actions controlled by thin-shell auto mechanics and affected by surface imperfections, wall surface harmony, and interior stress.
When fractured, the microsphere loses its protecting and lightweight buildings, highlighting the demand for mindful handling and matrix compatibility in composite style.
Regardless of their delicacy under point loads, the spherical geometry disperses stress and anxiety equally, permitting HGMs to withstand significant hydrostatic stress in applications such as subsea syntactic foams.
( Hollow glass microspheres)
2. Manufacturing and Quality Assurance Processes
2.1 Manufacturing Strategies and Scalability
HGMs are produced industrially making use of fire spheroidization or rotating kiln development, both including high-temperature processing of raw glass powders or preformed beads.
In flame spheroidization, great glass powder is infused right into a high-temperature fire, where surface area stress draws liquified droplets right into rounds while inner gases broaden them into hollow structures.
Rotary kiln methods entail feeding precursor grains into a revolving heating system, making it possible for continual, large production with tight control over bit size circulation.
Post-processing steps such as sieving, air category, and surface area therapy ensure constant bit dimension and compatibility with target matrices.
Advanced manufacturing now consists of surface area functionalization with silane combining representatives to boost attachment to polymer resins, decreasing interfacial slippage and enhancing composite mechanical residential or commercial properties.
2.2 Characterization and Performance Metrics
Quality control for HGMs relies upon a collection of logical methods to validate essential specifications.
Laser diffraction and scanning electron microscopy (SEM) examine fragment size distribution and morphology, while helium pycnometry determines true fragment density.
Crush stamina is assessed making use of hydrostatic pressure examinations or single-particle compression in nanoindentation systems.
Bulk and tapped density dimensions inform managing and blending actions, vital for industrial solution.
Thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC) evaluate thermal stability, with the majority of HGMs remaining steady up to 600– 800 ° C, depending on structure.
These standardized tests make sure batch-to-batch consistency and make it possible for trustworthy efficiency prediction in end-use applications.
3. Practical Qualities and Multiscale Consequences
3.1 Thickness Reduction and Rheological Behavior
The key feature of HGMs is to decrease the density of composite materials without considerably endangering mechanical honesty.
By replacing solid resin or steel with air-filled balls, formulators attain weight cost savings of 20– 50% in polymer composites, adhesives, and concrete systems.
This lightweighting is important in aerospace, marine, and auto markets, where lowered mass translates to enhanced gas effectiveness and payload capability.
In liquid systems, HGMs affect rheology; their round shape reduces thickness contrasted to irregular fillers, improving circulation and moldability, though high loadings can boost thixotropy as a result of fragment interactions.
Correct diffusion is important to prevent jumble and guarantee consistent residential properties throughout the matrix.
3.2 Thermal and Acoustic Insulation Quality
The entrapped air within HGMs supplies exceptional thermal insulation, with effective thermal conductivity worths as low as 0.04– 0.08 W/(m · K), depending on volume fraction and matrix conductivity.
This makes them valuable in insulating layers, syntactic foams for subsea pipelines, and fire-resistant building materials.
The closed-cell framework also hinders convective warm transfer, boosting efficiency over open-cell foams.
In a similar way, the impedance inequality in between glass and air scatters acoustic waves, giving moderate acoustic damping in noise-control applications such as engine rooms and marine hulls.
While not as efficient as devoted acoustic foams, their double duty as lightweight fillers and second dampers adds practical value.
4. Industrial and Emerging Applications
4.1 Deep-Sea Design and Oil & Gas Equipments
One of one of the most demanding applications of HGMs remains in syntactic foams for deep-ocean buoyancy modules, where they are installed in epoxy or vinyl ester matrices to produce composites that resist severe hydrostatic stress.
These materials maintain positive buoyancy at midsts exceeding 6,000 meters, making it possible for autonomous undersea cars (AUVs), subsea sensors, and overseas drilling tools to operate without heavy flotation tanks.
In oil well cementing, HGMs are added to seal slurries to reduce density and stop fracturing of weak developments, while additionally boosting thermal insulation in high-temperature wells.
Their chemical inertness makes sure long-term stability in saline and acidic downhole environments.
4.2 Aerospace, Automotive, and Sustainable Technologies
In aerospace, HGMs are utilized in radar domes, interior panels, and satellite parts to reduce weight without compromising dimensional security.
Automotive suppliers incorporate them right into body panels, underbody finishes, and battery units for electrical cars to improve energy performance and minimize discharges.
Emerging uses include 3D printing of lightweight structures, where HGM-filled materials allow facility, low-mass parts for drones and robotics.
In lasting building and construction, HGMs boost the insulating homes of lightweight concrete and plasters, adding to energy-efficient structures.
Recycled HGMs from hazardous waste streams are additionally being explored to enhance the sustainability of composite products.
Hollow glass microspheres exhibit the power of microstructural design to change bulk product homes.
By incorporating reduced density, thermal stability, and processability, they make it possible for advancements across marine, energy, transportation, and environmental sectors.
As material scientific research developments, HGMs will continue to play a crucial duty in the development of high-performance, light-weight materials for future innovations.
