1. Essential Chemistry and Crystallographic Architecture of Boron Carbide
1.1 Molecular Structure and Architectural Complexity

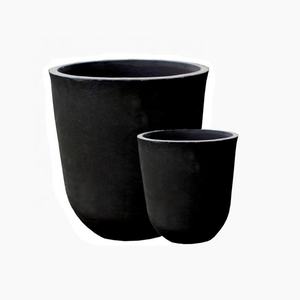

(Boron Carbide Ceramic)
Boron carbide (B FOUR C) stands as one of the most intriguing and technically crucial ceramic materials as a result of its distinct combination of severe firmness, low thickness, and extraordinary neutron absorption capacity.
Chemically, it is a non-stoichiometric compound largely composed of boron and carbon atoms, with an idealized formula of B ā C, though its real structure can range from B FOUR C to B āā. ā C, mirroring a broad homogeneity array regulated by the substitution mechanisms within its facility crystal lattice.
The crystal framework of boron carbide comes from the rhombohedral system (space group R3Ģm), characterized by a three-dimensional network of 12-atom icosahedra– clusters of boron atoms– connected by linear C-B-C or C-C chains along the trigonal axis.
These icosahedra, each containing 11 boron atoms and 1 carbon atom (B āā C), are covalently bonded via exceptionally strong B– B, B– C, and C– C bonds, adding to its impressive mechanical rigidity and thermal stability.
The presence of these polyhedral units and interstitial chains introduces architectural anisotropy and inherent flaws, which affect both the mechanical habits and digital properties of the product.
Unlike simpler porcelains such as alumina or silicon carbide, boron carbide’s atomic architecture permits substantial configurational flexibility, making it possible for issue formation and cost circulation that affect its efficiency under anxiety and irradiation.
1.2 Physical and Electronic Properties Occurring from Atomic Bonding
The covalent bonding network in boron carbide results in one of the highest well-known hardness worths among synthetic products– second only to diamond and cubic boron nitride– commonly ranging from 30 to 38 Grade point average on the Vickers hardness scale.
Its thickness is extremely reduced (~ 2.52 g/cm TWO), making it approximately 30% lighter than alumina and nearly 70% lighter than steel, an essential advantage in weight-sensitive applications such as personal armor and aerospace parts.
Boron carbide displays exceptional chemical inertness, standing up to strike by most acids and alkalis at space temperature level, although it can oxidize above 450 Ā° C in air, developing boric oxide (B ā O FOUR) and carbon dioxide, which may jeopardize architectural honesty in high-temperature oxidative atmospheres.
It possesses a vast bandgap (~ 2.1 eV), identifying it as a semiconductor with possible applications in high-temperature electronic devices and radiation detectors.
Moreover, its high Seebeck coefficient and low thermal conductivity make it a prospect for thermoelectric energy conversion, especially in extreme environments where conventional products stop working.
(Boron Carbide Ceramic)
The product additionally demonstrates exceptional neutron absorption because of the high neutron capture cross-section of the Ā¹ā° B isotope (around 3837 barns for thermal neutrons), making it vital in atomic power plant control rods, securing, and spent gas storage space systems.
2. Synthesis, Processing, and Challenges in Densification
2.1 Industrial Manufacturing and Powder Manufacture Methods
Boron carbide is primarily generated through high-temperature carbothermal reduction of boric acid (H TWO BO FOUR) or boron oxide (B TWO O ā) with carbon resources such as petroleum coke or charcoal in electric arc heaters running over 2000 Ā° C.
The reaction continues as: 2B TWO O SIX + 7C ā B ā C + 6CO, generating coarse, angular powders that need considerable milling to attain submicron fragment sizes suitable for ceramic handling.
Different synthesis courses include self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted approaches, which offer better control over stoichiometry and particle morphology yet are much less scalable for industrial use.
Because of its severe hardness, grinding boron carbide into fine powders is energy-intensive and susceptible to contamination from milling media, necessitating the use of boron carbide-lined mills or polymeric grinding help to protect purity.
The resulting powders need to be very carefully categorized and deagglomerated to ensure uniform packaging and reliable sintering.
2.2 Sintering Limitations and Advanced Consolidation Methods
A major difficulty in boron carbide ceramic manufacture is its covalent bonding nature and low self-diffusion coefficient, which seriously restrict densification during conventional pressureless sintering.
Also at temperature levels coming close to 2200 Ā° C, pressureless sintering commonly yields porcelains with 80– 90% of theoretical thickness, leaving recurring porosity that degrades mechanical toughness and ballistic performance.
To conquer this, progressed densification strategies such as hot pressing (HP) and warm isostatic pressing (HIP) are utilized.
Warm pressing uses uniaxial stress (usually 30– 50 MPa) at temperatures in between 2100 Ā° C and 2300 Ā° C, promoting bit reformation and plastic contortion, enabling thickness surpassing 95%.
HIP even more enhances densification by using isostatic gas pressure (100– 200 MPa) after encapsulation, eliminating shut pores and accomplishing near-full thickness with enhanced fracture strength.
Additives such as carbon, silicon, or transition steel borides (e.g., TiB TWO, CrB ā) are sometimes presented in little amounts to boost sinterability and inhibit grain development, though they might somewhat decrease hardness or neutron absorption efficiency.
Regardless of these advancements, grain boundary weak point and intrinsic brittleness continue to be persistent challenges, particularly under dynamic loading problems.
3. Mechanical Habits and Performance Under Extreme Loading Issues
3.1 Ballistic Resistance and Failure Mechanisms
Boron carbide is extensively recognized as a premier product for light-weight ballistic defense in body shield, vehicle plating, and aircraft protecting.
Its high firmness allows it to successfully deteriorate and warp incoming projectiles such as armor-piercing bullets and pieces, dissipating kinetic energy via systems including crack, microcracking, and local phase makeover.
However, boron carbide shows a sensation referred to as “amorphization under shock,” where, under high-velocity impact (normally > 1.8 km/s), the crystalline structure falls down right into a disordered, amorphous stage that lacks load-bearing ability, resulting in catastrophic failure.
This pressure-induced amorphization, observed by means of in-situ X-ray diffraction and TEM researches, is credited to the breakdown of icosahedral systems and C-B-C chains under extreme shear stress.
Efforts to minimize this include grain refinement, composite style (e.g., B ā C-SiC), and surface area finishing with ductile steels to delay fracture breeding and consist of fragmentation.
3.2 Put On Resistance and Commercial Applications
Beyond protection, boron carbide’s abrasion resistance makes it suitable for industrial applications involving extreme wear, such as sandblasting nozzles, water jet reducing suggestions, and grinding media.
Its firmness considerably surpasses that of tungsten carbide and alumina, resulting in extensive life span and minimized maintenance prices in high-throughput manufacturing environments.
Components made from boron carbide can run under high-pressure abrasive flows without rapid destruction, although treatment should be required to stay clear of thermal shock and tensile stresses during procedure.
Its use in nuclear environments also extends to wear-resistant elements in gas handling systems, where mechanical durability and neutron absorption are both called for.
4. Strategic Applications in Nuclear, Aerospace, and Arising Technologies
4.1 Neutron Absorption and Radiation Shielding Equipments
One of the most important non-military applications of boron carbide remains in nuclear energy, where it serves as a neutron-absorbing material in control rods, closure pellets, and radiation securing structures.
Because of the high wealth of the Ā¹ā° B isotope (naturally ~ 20%, but can be enhanced to > 90%), boron carbide effectively records thermal neutrons through the Ā¹ā° B(n, Ī±)seven Li response, generating alpha bits and lithium ions that are quickly included within the product.
This reaction is non-radioactive and creates minimal long-lived results, making boron carbide safer and extra steady than alternatives like cadmium or hafnium.
It is made use of in pressurized water reactors (PWRs), boiling water activators (BWRs), and research study reactors, typically in the type of sintered pellets, dressed tubes, or composite panels.
Its security under neutron irradiation and ability to keep fission items improve activator security and operational durability.
4.2 Aerospace, Thermoelectrics, and Future Product Frontiers
In aerospace, boron carbide is being explored for usage in hypersonic automobile leading edges, where its high melting factor (~ 2450 Ā° C), reduced density, and thermal shock resistance deal advantages over metallic alloys.
Its possibility in thermoelectric devices originates from its high Seebeck coefficient and reduced thermal conductivity, enabling straight conversion of waste heat right into power in severe environments such as deep-space probes or nuclear-powered systems.
Research study is additionally underway to develop boron carbide-based compounds with carbon nanotubes or graphene to boost sturdiness and electrical conductivity for multifunctional structural electronic devices.
Additionally, its semiconductor properties are being leveraged in radiation-hardened sensing units and detectors for room and nuclear applications.
In summary, boron carbide ceramics stand for a keystone material at the intersection of extreme mechanical performance, nuclear engineering, and advanced production.
Its one-of-a-kind combination of ultra-high solidity, low density, and neutron absorption capability makes it irreplaceable in defense and nuclear modern technologies, while ongoing research remains to broaden its utility into aerospace, energy conversion, and next-generation compounds.
As refining methods enhance and brand-new composite styles emerge, boron carbide will certainly stay at the forefront of materials technology for the most demanding technological difficulties.
