1. Material Fundamentals and Microstructural Features of Alumina Ceramics
1.1 Composition, Pureness Qualities, and Crystallographic Properties

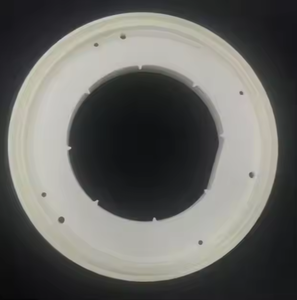

(Alumina Ceramic Wear Liners)
Alumina (Al Two O TWO), or aluminum oxide, is among one of the most commonly utilized technical porcelains in industrial design because of its excellent balance of mechanical toughness, chemical security, and cost-effectiveness.
When crafted right into wear liners, alumina porcelains are normally produced with pureness degrees varying from 85% to 99.9%, with greater pureness representing boosted solidity, use resistance, and thermal performance.
The leading crystalline phase is alpha-alumina, which adopts a hexagonal close-packed (HCP) structure defined by strong ionic and covalent bonding, contributing to its high melting point (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics contain penalty, equiaxed grains whose dimension and circulation are managed throughout sintering to maximize mechanical residential properties.
Grain sizes typically vary from submicron to numerous micrometers, with finer grains usually boosting crack sturdiness and resistance to crack proliferation under rough filling.
Minor ingredients such as magnesium oxide (MgO) are frequently presented in trace total up to prevent abnormal grain growth throughout high-temperature sintering, ensuring uniform microstructure and dimensional security.
The resulting material shows a Vickers firmness of 1500– 2000 HV, dramatically exceeding that of set steel (generally 600– 800 HV), making it extremely immune to surface area deterioration in high-wear atmospheres.
1.2 Mechanical and Thermal Efficiency in Industrial Issues
Alumina ceramic wear liners are picked primarily for their outstanding resistance to unpleasant, erosive, and sliding wear systems prevalent in bulk product dealing with systems.
They possess high compressive strength (up to 3000 MPa), good flexural strength (300– 500 MPa), and excellent rigidity (Young’s modulus of ~ 380 GPa), enabling them to withstand intense mechanical loading without plastic deformation.
Although inherently weak contrasted to metals, their reduced coefficient of rubbing and high surface area solidity reduce fragment attachment and reduce wear prices by orders of magnitude relative to steel or polymer-based choices.
Thermally, alumina keeps architectural honesty approximately 1600 ° C in oxidizing atmospheres, enabling usage in high-temperature processing environments such as kiln feed systems, central heating boiler ducting, and pyroprocessing tools.

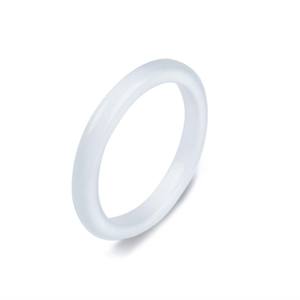

( Alumina Ceramic Wear Liners)
Its low thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional stability throughout thermal biking, minimizing the danger of cracking as a result of thermal shock when correctly installed.
Furthermore, alumina is electrically protecting and chemically inert to most acids, alkalis, and solvents, making it appropriate for corrosive environments where metallic linings would deteriorate swiftly.
These mixed properties make alumina ceramics perfect for securing important framework in mining, power generation, cement manufacturing, and chemical handling markets.
2. Production Processes and Layout Integration Methods
2.1 Forming, Sintering, and Quality Control Protocols
The manufacturing of alumina ceramic wear linings entails a sequence of accuracy manufacturing actions developed to attain high thickness, very little porosity, and consistent mechanical efficiency.
Raw alumina powders are refined through milling, granulation, and developing strategies such as completely dry pressing, isostatic pressing, or extrusion, relying on the wanted geometry– tiles, plates, pipes, or custom-shaped sectors.
Green bodies are after that sintered at temperature levels between 1500 ° C and 1700 ° C in air, advertising densification with solid-state diffusion and achieving loved one densities going beyond 95%, typically coming close to 99% of academic density.
Full densification is important, as recurring porosity works as stress concentrators and increases wear and fracture under solution problems.
Post-sintering procedures might consist of diamond grinding or lapping to attain tight dimensional resistances and smooth surface finishes that reduce friction and particle capturing.
Each batch goes through extensive quality control, consisting of X-ray diffraction (XRD) for stage analysis, scanning electron microscopy (SEM) for microstructural assessment, and firmness and bend screening to confirm conformity with worldwide requirements such as ISO 6474 or ASTM B407.
2.2 Installing Methods and System Compatibility Considerations
Reliable assimilation of alumina wear linings into industrial tools calls for mindful attention to mechanical attachment and thermal expansion compatibility.
Typical installation techniques include sticky bonding using high-strength ceramic epoxies, mechanical fastening with studs or supports, and embedding within castable refractory matrices.
Sticky bonding is extensively made use of for flat or carefully rounded surface areas, providing consistent stress circulation and vibration damping, while stud-mounted systems enable easy substitute and are liked in high-impact areas.
To accommodate differential thermal development between alumina and metal substrates (e.g., carbon steel), crafted gaps, adaptable adhesives, or compliant underlayers are included to prevent delamination or breaking during thermal transients.
Designers should additionally consider side protection, as ceramic tiles are at risk to damaging at subjected edges; services consist of beveled edges, steel shrouds, or overlapping ceramic tile arrangements.
Correct installation makes sure lengthy life span and takes full advantage of the protective function of the liner system.
3. Use Mechanisms and Performance Analysis in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Effect Loading
Alumina ceramic wear linings excel in settings controlled by three primary wear devices: two-body abrasion, three-body abrasion, and fragment disintegration.
In two-body abrasion, hard fragments or surface areas straight gouge the lining surface, a typical incident in chutes, receptacles, and conveyor changes.
Three-body abrasion includes loose bits trapped between the lining and relocating material, leading to rolling and damaging action that gradually gets rid of material.
Erosive wear takes place when high-velocity particles strike the surface area, especially in pneumatic conveying lines and cyclone separators.
As a result of its high hardness and low crack toughness, alumina is most efficient in low-impact, high-abrasion situations.
It does exceptionally well against siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be lowered by 10– 50 times compared to moderate steel liners.
However, in applications involving repeated high-energy impact, such as key crusher chambers, hybrid systems combining alumina floor tiles with elastomeric backings or metallic guards are commonly used to soak up shock and protect against crack.
3.2 Field Screening, Life Process Evaluation, and Failing Setting Analysis
Performance examination of alumina wear liners includes both laboratory screening and area surveillance.
Standardized tests such as the ASTM G65 dry sand rubber wheel abrasion test supply relative wear indices, while tailored slurry disintegration rigs imitate site-specific problems.
In commercial setups, put on price is usually determined in mm/year or g/kWh, with life span projections based upon first density and observed destruction.
Failure settings consist of surface sprucing up, micro-cracking, spalling at edges, and complete floor tile dislodgement as a result of glue degradation or mechanical overload.
Source analysis typically exposes setup errors, improper grade selection, or unanticipated influence loads as primary contributors to premature failure.
Life cycle cost evaluation continually demonstrates that in spite of greater initial prices, alumina linings offer remarkable complete price of possession as a result of prolonged replacement intervals, lowered downtime, and lower upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Applications Throughout Heavy Industries
Alumina ceramic wear liners are deployed across a broad spectrum of industrial sectors where material destruction poses functional and economic obstacles.
In mining and mineral processing, they safeguard transfer chutes, mill linings, hydrocyclones, and slurry pumps from abrasive slurries consisting of quartz, hematite, and various other difficult minerals.
In power plants, alumina tiles line coal pulverizer air ducts, boiler ash receptacles, and electrostatic precipitator elements revealed to fly ash disintegration.
Concrete makers make use of alumina liners in raw mills, kiln inlet zones, and clinker conveyors to fight the highly rough nature of cementitious products.
The steel sector uses them in blast heating system feed systems and ladle shadows, where resistance to both abrasion and moderate thermal loads is important.
Also in less conventional applications such as waste-to-energy plants and biomass handling systems, alumina porcelains provide resilient defense versus chemically hostile and coarse products.
4.2 Emerging Patterns: Compound Equipments, Smart Liners, and Sustainability
Present study focuses on improving the strength and capability of alumina wear systems with composite layout.
Alumina-zirconia (Al ₂ O TWO-ZrO ₂) composites leverage transformation toughening from zirconia to boost crack resistance, while alumina-titanium carbide (Al two O ₃-TiC) grades use improved efficiency in high-temperature moving wear.
One more development includes embedding sensing units within or under ceramic linings to monitor wear progression, temperature, and influence regularity– enabling anticipating upkeep and electronic double integration.
From a sustainability perspective, the prolonged service life of alumina liners reduces product intake and waste generation, straightening with circular economy concepts in commercial procedures.
Recycling of spent ceramic linings into refractory accumulations or building materials is also being checked out to lessen ecological footprint.
Finally, alumina ceramic wear liners represent a foundation of modern-day industrial wear security innovation.
Their outstanding solidity, thermal security, and chemical inertness, incorporated with fully grown manufacturing and setup techniques, make them crucial in combating product destruction across hefty sectors.
As product science breakthroughs and digital tracking ends up being a lot more integrated, the next generation of smart, resilient alumina-based systems will certainly further boost functional effectiveness and sustainability in unpleasant atmospheres.
