1. Fundamental Composition and Architectural Attributes of Quartz Ceramics
1.1 Chemical Purity and Crystalline-to-Amorphous Change

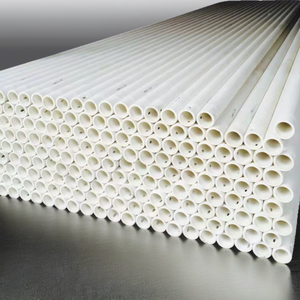

(Quartz Ceramics)
Quartz ceramics, additionally referred to as fused silica or merged quartz, are a class of high-performance inorganic products derived from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) form.
Unlike standard ceramics that rely upon polycrystalline structures, quartz ceramics are identified by their full absence of grain limits as a result of their lustrous, isotropic network of SiO four tetrahedra adjoined in a three-dimensional random network.
This amorphous framework is accomplished via high-temperature melting of natural quartz crystals or artificial silica forerunners, complied with by rapid cooling to prevent formation.
The resulting material consists of typically over 99.9% SiO ₂, with trace pollutants such as alkali metals (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million degrees to protect optical quality, electric resistivity, and thermal performance.
The lack of long-range order gets rid of anisotropic behavior, making quartz porcelains dimensionally stable and mechanically uniform in all instructions– an important benefit in precision applications.
1.2 Thermal Behavior and Resistance to Thermal Shock
Among the most specifying functions of quartz ceramics is their incredibly low coefficient of thermal development (CTE), typically around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero expansion occurs from the versatile Si– O– Si bond angles in the amorphous network, which can adjust under thermal anxiety without breaking, enabling the material to endure rapid temperature level adjustments that would fracture traditional ceramics or steels.
Quartz porcelains can withstand thermal shocks surpassing 1000 ° C, such as direct immersion in water after warming to red-hot temperatures, without fracturing or spalling.
This residential property makes them important in atmospheres entailing duplicated heating and cooling down cycles, such as semiconductor handling heating systems, aerospace parts, and high-intensity lighting systems.
Additionally, quartz ceramics preserve structural stability up to temperature levels of approximately 1100 ° C in continual solution, with short-term direct exposure tolerance coming close to 1600 ° C in inert atmospheres.
( Quartz Ceramics)
Beyond thermal shock resistance, they display high softening temperature levels (~ 1600 ° C )and outstanding resistance to devitrification– though extended direct exposure above 1200 ° C can start surface area crystallization into cristobalite, which might jeopardize mechanical toughness due to quantity changes throughout phase changes.
2. Optical, Electrical, and Chemical Qualities of Fused Silica Systems
2.1 Broadband Openness and Photonic Applications
Quartz porcelains are renowned for their outstanding optical transmission throughout a large spectral array, prolonging from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is made it possible for by the absence of pollutants and the homogeneity of the amorphous network, which lessens light scattering and absorption.
High-purity artificial merged silica, produced by means of flame hydrolysis of silicon chlorides, accomplishes even better UV transmission and is used in important applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The product’s high laser damages threshold– standing up to malfunction under intense pulsed laser irradiation– makes it excellent for high-energy laser systems made use of in blend study and commercial machining.
Additionally, its reduced autofluorescence and radiation resistance guarantee integrity in clinical instrumentation, including spectrometers, UV curing systems, and nuclear surveillance gadgets.
2.2 Dielectric Performance and Chemical Inertness
From an electric perspective, quartz ceramics are outstanding insulators with quantity resistivity exceeding 10 ¹⁸ Ω · centimeters at room temperature and a dielectric constant of around 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) guarantees very little power dissipation in high-frequency and high-voltage applications, making them suitable for microwave home windows, radar domes, and shielding substrates in electronic assemblies.
These homes remain stable over a broad temperature range, unlike lots of polymers or conventional porcelains that break down electrically under thermal tension.
Chemically, quartz porcelains display impressive inertness to a lot of acids, including hydrochloric, nitric, and sulfuric acids, as a result of the security of the Si– O bond.
Nevertheless, they are at risk to assault by hydrofluoric acid (HF) and strong alkalis such as warm sodium hydroxide, which break the Si– O– Si network.
This careful sensitivity is made use of in microfabrication processes where regulated etching of fused silica is needed.
In aggressive industrial environments– such as chemical processing, semiconductor damp benches, and high-purity fluid handling– quartz ceramics work as linings, sight glasses, and reactor components where contamination need to be reduced.
3. Production Processes and Geometric Engineering of Quartz Ceramic Parts
3.1 Thawing and Forming Methods
The manufacturing of quartz ceramics includes a number of specialized melting techniques, each tailored to certain purity and application demands.
Electric arc melting utilizes high-purity quartz sand melted in a water-cooled copper crucible under vacuum or inert gas, generating big boules or tubes with excellent thermal and mechanical residential or commercial properties.
Fire fusion, or burning synthesis, entails burning silicon tetrachloride (SiCl four) in a hydrogen-oxygen fire, depositing great silica bits that sinter into a transparent preform– this technique produces the highest possible optical top quality and is utilized for synthetic fused silica.
Plasma melting offers an alternative path, supplying ultra-high temperature levels and contamination-free handling for specific niche aerospace and protection applications.
When thawed, quartz ceramics can be formed with precision casting, centrifugal creating (for tubes), or CNC machining of pre-sintered blanks.
Because of their brittleness, machining needs ruby devices and careful control to stay clear of microcracking.
3.2 Accuracy Fabrication and Surface Area Finishing
Quartz ceramic elements are often produced right into intricate geometries such as crucibles, tubes, rods, home windows, and custom insulators for semiconductor, solar, and laser sectors.
Dimensional precision is critical, specifically in semiconductor manufacturing where quartz susceptors and bell jars have to preserve accurate positioning and thermal uniformity.
Surface area completing plays an important duty in performance; sleek surface areas decrease light spreading in optical parts and minimize nucleation sites for devitrification in high-temperature applications.
Etching with buffered HF services can generate controlled surface textures or eliminate damaged layers after machining.
For ultra-high vacuum (UHV) systems, quartz porcelains are cleaned and baked to get rid of surface-adsorbed gases, guaranteeing marginal outgassing and compatibility with sensitive procedures like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Duty in Semiconductor and Photovoltaic Manufacturing
Quartz ceramics are foundational products in the fabrication of incorporated circuits and solar cells, where they serve as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to endure heats in oxidizing, decreasing, or inert atmospheres– integrated with reduced metallic contamination– ensures procedure purity and yield.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz elements maintain dimensional security and stand up to bending, protecting against wafer damage and misalignment.
In photovoltaic production, quartz crucibles are made use of to expand monocrystalline silicon ingots using the Czochralski process, where their pureness straight influences the electrical high quality of the final solar batteries.
4.2 Usage in Lighting, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes have plasma arcs at temperature levels surpassing 1000 ° C while transmitting UV and visible light effectively.
Their thermal shock resistance prevents failure throughout fast lamp ignition and closure cycles.
In aerospace, quartz ceramics are utilized in radar windows, sensor real estates, and thermal security systems due to their low dielectric continuous, high strength-to-density ratio, and stability under aerothermal loading.
In analytical chemistry and life sciences, fused silica blood vessels are crucial in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness stops sample adsorption and makes certain exact splitting up.
Furthermore, quartz crystal microbalances (QCMs), which depend on the piezoelectric properties of crystalline quartz (unique from merged silica), make use of quartz porcelains as protective housings and protecting assistances in real-time mass sensing applications.
In conclusion, quartz ceramics stand for a distinct intersection of severe thermal strength, optical transparency, and chemical purity.
Their amorphous structure and high SiO two web content enable efficiency in environments where traditional materials stop working, from the heart of semiconductor fabs to the side of room.
As innovation developments toward higher temperatures, greater accuracy, and cleaner procedures, quartz porcelains will remain to act as a critical enabler of development across scientific research and market.
