1. Basic Properties and Nanoscale Habits of Silicon at the Submicron Frontier
1.1 Quantum Confinement and Electronic Structure Improvement

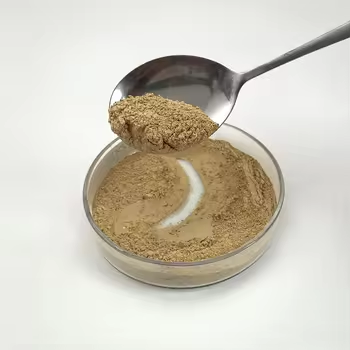

(Nano-Silicon Powder)
Nano-silicon powder, made up of silicon particles with particular dimensions below 100 nanometers, stands for a standard shift from mass silicon in both physical behavior and useful utility.
While mass silicon is an indirect bandgap semiconductor with a bandgap of around 1.12 eV, nano-sizing generates quantum confinement effects that essentially modify its electronic and optical buildings.
When the particle size approaches or falls below the exciton Bohr distance of silicon (~ 5 nm), charge carriers come to be spatially confined, bring about a widening of the bandgap and the appearance of noticeable photoluminescence– a sensation lacking in macroscopic silicon.
This size-dependent tunability allows nano-silicon to discharge light across the visible spectrum, making it an appealing prospect for silicon-based optoelectronics, where standard silicon fails as a result of its poor radiative recombination effectiveness.
Furthermore, the raised surface-to-volume proportion at the nanoscale enhances surface-related sensations, consisting of chemical reactivity, catalytic task, and communication with magnetic fields.
These quantum results are not merely academic interests however create the structure for next-generation applications in power, sensing, and biomedicine.
1.2 Morphological Diversity and Surface Chemistry
Nano-silicon powder can be synthesized in various morphologies, including round nanoparticles, nanowires, permeable nanostructures, and crystalline quantum dots, each offering unique advantages depending upon the target application.
Crystalline nano-silicon typically preserves the diamond cubic structure of mass silicon however shows a higher density of surface area defects and dangling bonds, which must be passivated to maintain the product.
Surface functionalization– usually achieved through oxidation, hydrosilylation, or ligand attachment– plays an essential role in figuring out colloidal security, dispersibility, and compatibility with matrices in compounds or biological settings.
For example, hydrogen-terminated nano-silicon reveals high reactivity and is vulnerable to oxidation in air, whereas alkyl- or polyethylene glycol (PEG)-coated fragments exhibit improved security and biocompatibility for biomedical usage.

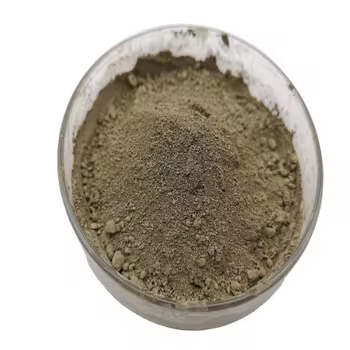

( Nano-Silicon Powder)
The visibility of an indigenous oxide layer (SiOₓ) on the bit surface area, even in minimal quantities, substantially affects electric conductivity, lithium-ion diffusion kinetics, and interfacial responses, specifically in battery applications.
Recognizing and controlling surface area chemistry is therefore crucial for harnessing the complete potential of nano-silicon in practical systems.
2. Synthesis Strategies and Scalable Manufacture Techniques
2.1 Top-Down Techniques: Milling, Etching, and Laser Ablation
The manufacturing of nano-silicon powder can be generally classified into top-down and bottom-up methods, each with unique scalability, purity, and morphological control features.
Top-down strategies involve the physical or chemical decrease of mass silicon right into nanoscale pieces.
High-energy ball milling is a widely used commercial method, where silicon pieces go through intense mechanical grinding in inert environments, leading to micron- to nano-sized powders.
While economical and scalable, this approach often introduces crystal flaws, contamination from crushing media, and broad particle size distributions, calling for post-processing purification.
Magnesiothermic reduction of silica (SiO ₂) complied with by acid leaching is an additional scalable route, particularly when using all-natural or waste-derived silica resources such as rice husks or diatoms, supplying a lasting pathway to nano-silicon.
Laser ablation and reactive plasma etching are extra precise top-down techniques, efficient in creating high-purity nano-silicon with controlled crystallinity, though at greater cost and reduced throughput.
2.2 Bottom-Up Methods: Gas-Phase and Solution-Phase Growth
Bottom-up synthesis allows for higher control over fragment size, shape, and crystallinity by developing nanostructures atom by atom.
Chemical vapor deposition (CVD) and plasma-enhanced CVD (PECVD) make it possible for the development of nano-silicon from gaseous forerunners such as silane (SiH FOUR) or disilane (Si ₂ H SIX), with parameters like temperature level, stress, and gas circulation dictating nucleation and growth kinetics.
These approaches are specifically effective for creating silicon nanocrystals embedded in dielectric matrices for optoelectronic devices.
Solution-phase synthesis, consisting of colloidal courses making use of organosilicon compounds, allows for the production of monodisperse silicon quantum dots with tunable discharge wavelengths.
Thermal disintegration of silane in high-boiling solvents or supercritical fluid synthesis additionally yields top notch nano-silicon with slim size distributions, suitable for biomedical labeling and imaging.
While bottom-up approaches normally create premium worldly top quality, they face difficulties in large-scale manufacturing and cost-efficiency, demanding recurring research right into hybrid and continuous-flow processes.
3. Power Applications: Changing Lithium-Ion and Beyond-Lithium Batteries
3.1 Role in High-Capacity Anodes for Lithium-Ion Batteries
Among one of the most transformative applications of nano-silicon powder depends on power storage, particularly as an anode material in lithium-ion batteries (LIBs).
Silicon provides an academic particular ability of ~ 3579 mAh/g based upon the development of Li ₁₅ Si ₄, which is virtually 10 times higher than that of conventional graphite (372 mAh/g).
Nevertheless, the large volume growth (~ 300%) during lithiation causes bit pulverization, loss of electric contact, and constant strong electrolyte interphase (SEI) development, bring about rapid capacity discolor.
Nanostructuring reduces these issues by shortening lithium diffusion courses, accommodating pressure more effectively, and lowering crack chance.
Nano-silicon in the form of nanoparticles, porous structures, or yolk-shell structures makes it possible for relatively easy to fix biking with improved Coulombic performance and cycle life.
Business battery modern technologies currently incorporate nano-silicon blends (e.g., silicon-carbon composites) in anodes to boost energy thickness in consumer electronic devices, electric lorries, and grid storage space systems.
3.2 Potential in Sodium-Ion, Potassium-Ion, and Solid-State Batteries
Past lithium-ion systems, nano-silicon is being explored in emerging battery chemistries.
While silicon is less reactive with salt than lithium, nano-sizing enhances kinetics and makes it possible for restricted Na ⁺ insertion, making it a prospect for sodium-ion battery anodes, especially when alloyed or composited with tin or antimony.
In solid-state batteries, where mechanical security at electrode-electrolyte user interfaces is important, nano-silicon’s ability to undergo plastic deformation at small ranges lowers interfacial tension and improves contact maintenance.
Furthermore, its compatibility with sulfide- and oxide-based solid electrolytes opens methods for safer, higher-energy-density storage space services.
Research continues to optimize interface engineering and prelithiation strategies to optimize the durability and effectiveness of nano-silicon-based electrodes.
4. Arising Frontiers in Photonics, Biomedicine, and Composite Products
4.1 Applications in Optoelectronics and Quantum Light Sources
The photoluminescent homes of nano-silicon have actually renewed initiatives to establish silicon-based light-emitting devices, an enduring difficulty in integrated photonics.
Unlike bulk silicon, nano-silicon quantum dots can show efficient, tunable photoluminescence in the noticeable to near-infrared array, making it possible for on-chip lights suitable with corresponding metal-oxide-semiconductor (CMOS) innovation.
These nanomaterials are being integrated into light-emitting diodes (LEDs), photodetectors, and waveguide-coupled emitters for optical interconnects and sensing applications.
Furthermore, surface-engineered nano-silicon displays single-photon exhaust under certain flaw arrangements, positioning it as a possible platform for quantum data processing and safe interaction.
4.2 Biomedical and Ecological Applications
In biomedicine, nano-silicon powder is gaining interest as a biocompatible, biodegradable, and non-toxic choice to heavy-metal-based quantum dots for bioimaging and medicine distribution.
Surface-functionalized nano-silicon bits can be created to target specific cells, release restorative representatives in reaction to pH or enzymes, and provide real-time fluorescence tracking.
Their destruction right into silicic acid (Si(OH)₄), a normally occurring and excretable compound, reduces lasting toxicity issues.
Additionally, nano-silicon is being explored for ecological removal, such as photocatalytic destruction of pollutants under visible light or as a reducing representative in water treatment processes.
In composite materials, nano-silicon enhances mechanical strength, thermal stability, and use resistance when incorporated into metals, porcelains, or polymers, especially in aerospace and vehicle components.
To conclude, nano-silicon powder stands at the junction of fundamental nanoscience and industrial innovation.
Its unique combination of quantum effects, high sensitivity, and versatility throughout power, electronic devices, and life sciences highlights its duty as an essential enabler of next-generation innovations.
As synthesis strategies development and assimilation obstacles are overcome, nano-silicon will certainly continue to drive progression towards higher-performance, sustainable, and multifunctional product systems.
