Bearings are often called the “joints of sector.” Obtaining the selection right directly impacts your devices’s dependability, service life, and upkeep costs. Several bearing failures don’t originate from low quality– they originate from wrong options. Things like lots calculation mistakes, ignoring rate restrictions, or selecting the wrong lubrication approach. These tiny mistakes can cause devices to break down early in its life span. This overview strolls you via the entire selection procedure, providing designers and procurement professionals a clear course from analyzing working conditions to confirming the best bearing design.
Part One: What You Need to Know Prior To Beginning
Prior to you open up any bearing brochure, ask on your own one inquiry: What exactly does this device need the birthing to do? The answer hinges on five vital locations:
1. Tons Characteristics
Load is the number one consider birthing selection. You need to identify three points:
Direction: Is it radial lots (vertical to the shaft), axial tons (parallel to the shaft), or a mix of both?
Size: Is it light, modest, or heavy? Any type of impact loads?
Nature: Is the tons stable or altering? Just how typically do impact tons take place and just how solid are they?
Take a belt conveyor for instance. The bearings at the drive end take on radial tons from belt stress, the weight of the belt and rollers, plus the shaft assembly. When computing, you have to consider various operating problems– startup, normal running, stopping– and use the worst-case circumstance for your style.
2. Rate Conditions
(bearings for steel mill)
Rate is another critical factor affecting birthing life. According to exhaustion life concept, bearing life has an inverse connection with speed. For variable rate problems, you require to compute the comparable rate. Take a rotating kiln support roller– its speed could range from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each speed to obtain an equal value.
Something to keep an eye out for: recognizing just the maximum rate can screw up your lubrication strategy. The lube you select based on full throttle might not create a proper oil film at reduced speeds. Likewise, if your device has long idle durations, you should mention that– or else nearby tools vibrations might create incorrect brinelling damages.
3. Required Life Span
Bearing life span is usually shared as L10h (the variety of hours that 90% of a bearing team will certainly reach before fatigue spalling shows up). An usual blunder is going with an excessively lengthy life– as soon as L10h goes beyond 100,000 hours, the bearing dimension obtains also huge. It ends up being harder to oil, torque boosts, and it ends up being a lot more sensitive to minimum tons. Ultimately, it could fail for factors apart from exhaustion.
4. Room Restraints
You must understand your offered space limitations from the start– shaft size range, housing birthed size, axial size restrictions. As soon as you know the matching shaft size and offered room, you can swiftly narrow down your options.
5. Running Precision Requirements
Most applications do just great with typical precision bearings. However, for high-speed or high-precision tools like machine device spindles, you’ll require P5, P4, and even higher grades. Just keep in mind that going with higher accuracy without a real requirement will certainly increase costs significantly. Suit the grade to your actual demands.
Sequel: Matching Bearing Types to Working Issues
Once you have those specifications clear, the next action is to match the appropriate bearing type based upon load instructions, dimension, rate, and imbalance tolerance.
1. Tons Instructions: Radial, Axial, or Incorporated?
This is the most fundamental filter. It can aim you to a couple of candidates today:

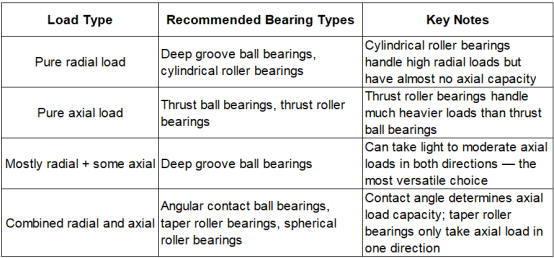

When the axial-to-radial lots proportion (Fa/Fr) adjustments, your selection logic adjustments as well. At reduced ratios, opt for deep groove round bearings. At modest ratios, utilize small-contact-angle angular get in touch with bearings or taper roller bearings. At high proportions, you’ll require large-contact-angle bearings, or take into consideration integrating a thrust bearing with a radial bearing.
( Radial)
2. Tons Dimension: Sphere Bearings or Roller Bearings?
This is a traditional choice:
Light or modest lots: Select ball bearings (deep groove or angular get in touch with). The factor get in touch with in between rounds and raceways provides lower rubbing, making them suitable for medium to broadband.
Heavy or influence tons: You need to utilize roller bearings (cylindrical, spherical, or taper). Line get in touch with in between rollers and raceways offers a lot higher tons capacity and better impact resistance.
3. Rate: Ball Bearings for Broadband, Roller Bearings for Low
Generally talking, round bearings have higher rate restrictions than roller bearings. For high-speed applications (above 1000 r/min), put round bearings on top of your listing. When you require the highest possible speed with pure radial load, open deep groove ball bearings are your best bet. For incorporated loads at high speed, angular call sphere bearings are the way to go.
Round roller bearings, taper roller bearings, and needle bearings have reasonably lower rate limitations. They’re generally fit for low-to-medium speed, heavy-load problems.
4. Misalignment Tolerance: Do You Required Self-Aligning?
This set commonly gets forgotten but it’s extremely essential. You need to take into consideration self-aligning bearings when:
Bearing real estate bores don’t align well
The shaft isn’t rigid sufficient and bends throughout operation
The bearing span is lengthy and thermal expansion creates angular misalignment
You’re making use of separate split real estates (like cushion block bearings)
Round roller bearings and spherical sphere bearings have scooped external ring raceways. This permits a certain quantity of angular misalignment in between the internal and external rings without dangerous edge anxiety. They can compensate for both vibrant deflection and fixed installation errors.
On the various other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have very minimal self-aligning ability. Even a tiny angular misalignment can cause tension concentration at the roller finishes, bring about high edge pressures that substantially reduce birthing life. Deep groove ball bearings do have some self-aligning capability, yet the permitted angle is tiny– going beyond it will reduce life too.
5. Axial Growth Settlement: Fixed End or Drifting End?
Lengthy shafts increase and contract with temperature level adjustments throughout operation. That suggests you need to establish your bearing setup with one fixed end and one drifting end.
NU and N series round roller bearings have no flanges on the inner ring (or on one side). This lets the shaft step openly in the axial instructions about the housing– making them optimal as floating-end bearings. NJ and NUP collection can provide axial positioning in one or both directions, so they function well as fixed-end bearings. This configuration is extremely common in transmissions and electrical motors.
Component 3: BMB Product at a Look

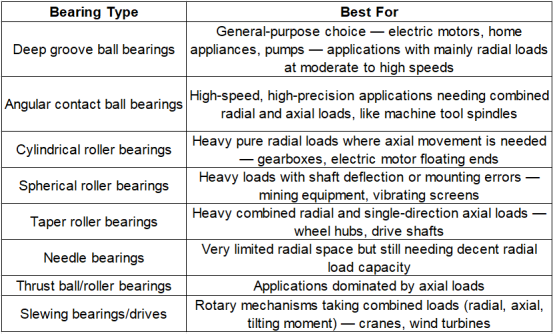

BMB provides a full variety of industrial bearings, covering all the significant kinds we’ve talked about. This fast reference table attaches the option principles over straight to particular item groups:
Component Four: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Precision Grades
Standard precision (P0) benefits the large bulk of general machinery. For accuracy equipment like device tool pins or aerospace components, you’ll require P5 or higher. Tighter precision implies tighter dimensional tolerances and far better running accuracy– but additionally greater prices.
2. Inner Clearance and Preload
Bearings require to maintain proper interior clearance after setup. Too much clearance causes vibration and noise. Insufficient, and thermal development can trigger the bearing to confiscate. In grandfather clauses like maker device spindles, preload (applying adverse clearance) is utilized to improve system rigidity and rotational precision.
3. Lubricant Selection
Lubrication is a make-or-break aspect for bearing life. Oil benefits many moderate-speed and temperature level applications– it’s simple to secure and can run maintenance-free for long periods. Oil (oil bathroom, oil haze, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates heat more effectively. When choosing a lubricant, check the rate aspect (ndm value). Don’t simply choose based upon maximum rate– the oil you choose may not develop an appropriate movie at lower speeds.
4. Sealing Program
Choose the seal type based on your environment: call seals maintain dirt out well however add some rubbing; non-contact seals benefit broadband however use less security versus contamination; open bearings rely on outside sealing systems.
Part 5: Life Estimation– From Theory to Method
( or Combined Basic Filter Table)
At the end of the day, you need to verify whether your picked bearing will really meet the anticipated life span. This is where standard ranking life calculation can be found in.
The standard ranking life L10 formula (ISO 281 standard):
For ball bearings: L10 = (C/P) THREE × (10 ⁶/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: standard dynamic lots rating (kN)– found in the item directory
P: equivalent dynamic load (kN)– takes both radial and axial lots into account
The equivalent vibrant tons P is calculated as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial load
X and Y are coefficients that depend upon birthing kind and the Fa/Fr ratio– inspect the magazine for these values
For even more requiring conditions, you can apply modification aspects: Ln = a1 × a2 × a3 × L10
a1 is the integrity factor (a1 = 1 for 90% integrity, regarding 0.21 for 99%)
a2 is the product variable (high-grade bearing steel can get to 1.5 to 2)
a3 is the operating problems aspect (great lubrication and sanitation can offer 2 to 3)
With this calculation, designers can verify that the selected bearing satisfies the necessary service life. It also aids compare numerous alternatives and make data-driven choices.
This guide has actually walked you via the full selection path– from analyzing working conditions, to matching the best bearing kind, to validating life span. Comprehending and using this approach will certainly assist you make precise, reliable, and cost-efficient bearing decisions across a variety of industrial applications.
